A read or write of a drive parameter by the Unidrive M onboard program takes a finite period of time. It is possible to select up to 10 parameters as fast access parameter which reduced the amount of time it takes for the Unidrive M onboard program to read from or write to a drive parameter. This is useful when using a Clock task with a fast update rate as selecting a parameter for fast access reduces the amount of the Clock task resource required to access parameters.



To set-up a Fast Access Parameter List, right click on Application in the Devices tab and select Add Object > Fast Access Parameter List... .

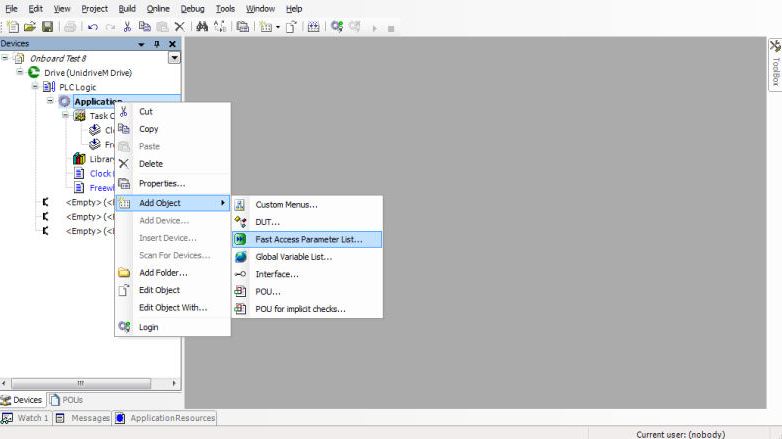

Select the Fast Access Parameter List



Machine Control Studio will then show the Fast Access Parameter List.

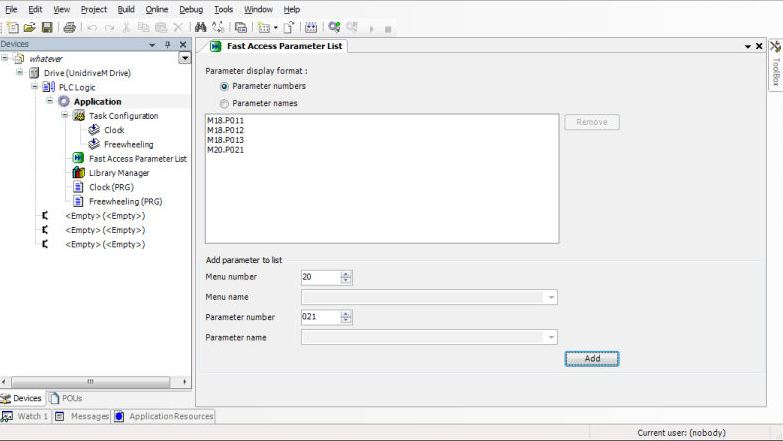

Fast Access Parameter List



To add a parameter to the Fast Access Parameter List first select the menu and parameter number, and then click Add. Up to 10 Fast Access Parameters can be listed.
