This function block is used to establish a connection to the specified server and makes a request for the Function Code to be executed.



Inputs:



xExecute :  BOOL; Set to TRUE to execute the function block if the last execution state was FALSE.



pServer : POINTER TO T_SERVER_STRUCT; Pointer to the server to connect to.



pChannel : POINTER TO T_CHANNEL_STRUCT; Pointer to the channel to execute on the specified server.



xBlocking : BOOL; Defines if the function block is blocking or non-blocking.





Outputs:



xdone : BOOL; If TRUE the Function Code has been executed successfully.



xBusy : BOOL; The connection is in progress (preparing the request or waiting for the response).



xError : BOOL; The connection has detected an error.



udiErrorID : CLIENT_ERROR_CODES; In case or error the error code is specified.

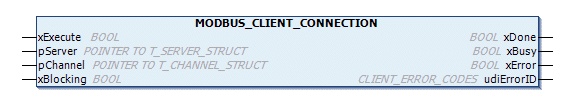

Example in FBD:







Example in ST:





 FB_ModbusConnection: MODBUS_CLIENT_CONNECTION;



 IF NOT  FB_ModbusConnection.xBusy THEN

         IF NOT FB_ModbusConnection.xError THEN





                 // Read the response data



         END_IF

 END_IF
