Navigation:  Libraries > CT Device Parameter Libraries > CT MCi Parameter Temp



The library CT MCi Parameter Library is installed to a device by default to allow easy access to the module parameters.



In the library are all parameters available for the MCi option module.

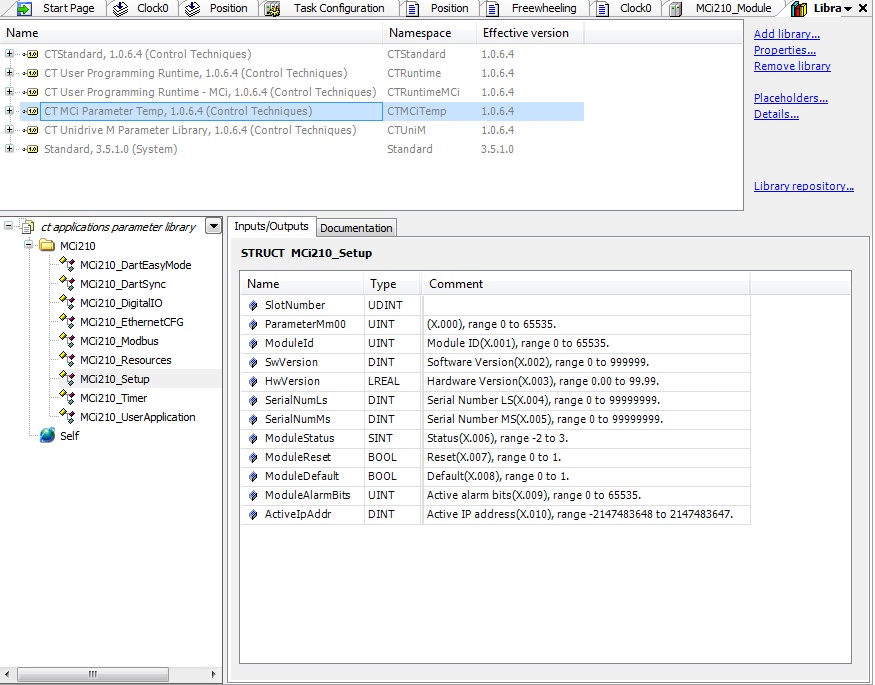

Viewing available menus and parameters



To view available parameters select the Library Manager attached to a device and select the library.



Note: Menus have 2 access methods:





Note: To access parameters on the module user code is running value 255 can be used in the slot function parameter meaning 'this'.







Information available:

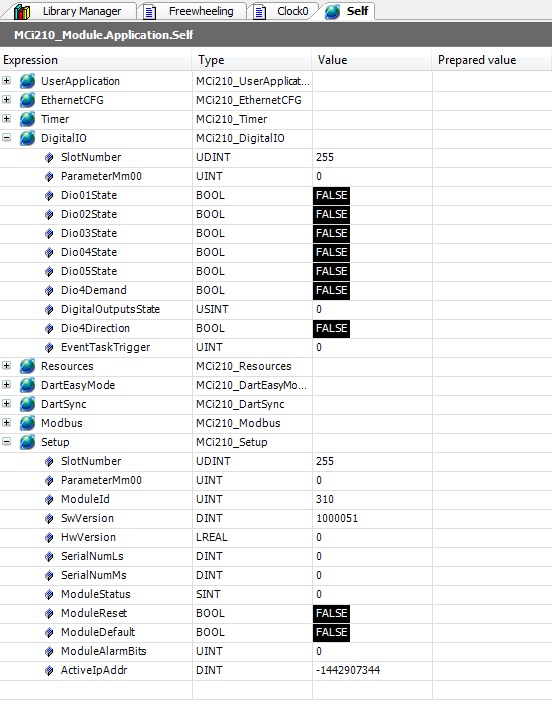

Viewing Online Values



When online a menu can be opened and values read from the module - in addition values can be entered into the Prepared Value column and sent to the module.



Note: A parameter from the menu opened MUST be referenced in an application to view values.
